This page shows you how to check the health of the current installation using Alfresco Share, and troubleshooting.
The SAP Connector Administration Console provides a smart overview of all important settings for the current state of the SAP Connector. Having all configuration settings and properties, from different parts of the installation, in one screen makes it easy to identify and review the current state.
The SAP Connector Administration Console is only available for Alfresco Share. If Alfresco Share isn’t available, you can use the SAP Connector Administration Health WebScript to check the status of the SAP Connector. See SAP Connector Administration Health Web Script for more.
Accessing the Administration Console
The SAP Connector Administration Console is installed as an Admin Tool, so you can access it via the Admin Tools toolbar in Alfresco Share. A new menu item SAP Integration is available. Click it to open the SAP Connector Administration Console.
Using the Administration Console
This is a deep dive into the different sections of the SAP Connector Administration Console.

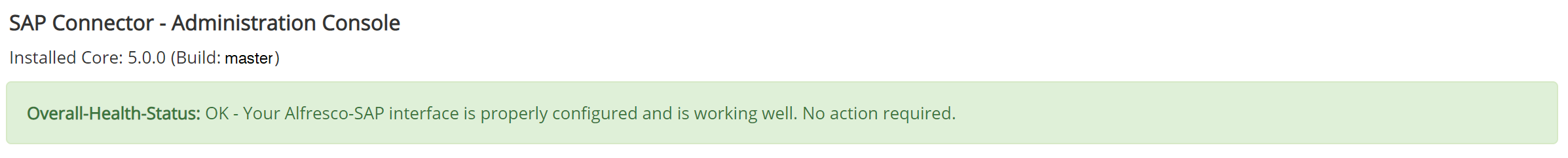

The header section provides a brief overview of the installed SAP Connector version and the build. It also displays the current SAP Connector health status based on the three traffic light colors (red, yellow and green). Having this, the overall health can be easily reviewed at a glance.
|Green||The SAP Connector is configured properly and is working. No action required.|
|Yellow||Review the current settings. Immediate action may not be required. Examples for this state are:
|Red||This flag requires immediate action. Examples are:
All important information regarding the current applied license (including the maintenance period) are displayed for the SAP Connector. In this section you can also apply a new license by using the Upload License button. See Installing the license for more.
SAP System Configuration Information
This section displays detailed information of all available SAP System Configurations from the
alfresco-global.properties. Each SAP System Configuration appears in a separate box and contains - besides the configuration settings from the
alfresco-global.properties - also all SAP Content Repositories which are set up for the SAP System Configuration along with their settings for Jobs, Behaviors. The next screenshot shows how one SAP System Configuration will be displayed. If you have two SAP System Configuration configured, this box displays twice, and so on.
The following sub-sections explains each area shown in the screenshot above in more detail.
Display important information used for the basic communication between SAP and Content Services. All settings are related to the settings in the
Note: The password for the user used to login to Content Services is never transmitted, hence it is not displayed in the Administration Console.
SAP Java Connector Settings
Display important information used for the connection from Content Services to SAP as well as related information for the Opening associated Business Object in SAP feature.
Note: The password for the SAP system user used to connect to SAP is never transmitted, hence it is not displayed in the Administration Console.
SAP Content Repositories
List all SAP Content Repositories connect via the current SAP System Configuration. Each SAP Content Repository appears in a new line. The background color of each SAP Content Repository indicates its current state in Content Services. The condition is also highlighted with traffic light colors, as the overall health state in the header too. Any other state than Green will affect the overall health state as well, meaning if the state is yellow, then also the overall health state in the header is at least yellow.
Note: If the state of a SAP Content Repository is highlighted with yellow background, there is a need to activate the certificate (sent from SAP) for that repository. In this case the Status column shows a button to activate the certificate.
Status Color Description Green The SAP Content Repository is up and running. Yellow The SAP Content Repository exists in Content Services and the certificate was also sent already. However, the certificate still needs to be activated to allow the communication. In this case, a button appears in the Status column to enable the certificate. Once enabled, the status color will switch to green. Red There are two options which lead to this state:
1. The SAP Content Repository was not created yet (see 1. Create SAP Content Repository).
2. The SAP Content Repository exists but the certificate was not sent yet (see 2. Secure connection using a certificate).
However, the message in the
Statuscolumn in such a case will show the exact reason.
This table lists all available jobs and the current state of each SAP Content Repository for it along with the CRON expression used to invoke the job. See Configuring jobs to learn more about how to enable or disable jobs for SAP Content Repositories.
Like for the jobs above, this table lists all available behaviors and the current state of each SAP Content Repository for it. See Configuring behaviors to learn more about how to enable or disable behaviors for SAP Content Repositories.
Feature: Open corresponding SAP Business Object
This section only appears if the Opening associated Business Object in SAP feature is used and the default settings was overridden. See Advanced configuration for more. It shows the content of related
webClient-config.propertiesfor the current SAP System Configuration.

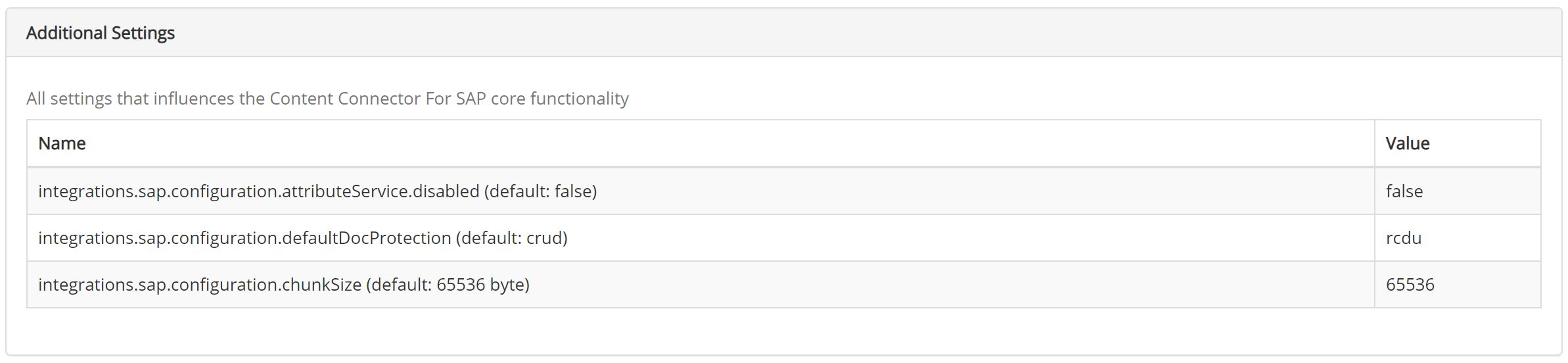

This section only appears if there are any of the additional settings which override the standard behavior of the SAP Connector. See Additional repository settings for more. These common settings affect the SAP Connector as they’re not related to a particular SAP System Configuration.
This section lists all additional settings available in the
alfresco-global.properties which are used to override core behavior. The Name column shows the property key, including the default value (in brackets), and the Value column shows the current value used to override the default.
Administration Health Web Script
This topic shows you how to check the health of the current installation using a Web Script.
The health Web Script can be used as an alternative way to check the state of the SAP Connector without accessing the SAP Connector Administration Console in Alfresco Share. It allows to review all settings related to a specific SAP Content Repository name (
archiveId) defined in
Note: Unlike the SAP Connector Administration Console, this Web Script just provides a configuration overview. It’s not intended for any action to be executed.
Accessing the Web Script

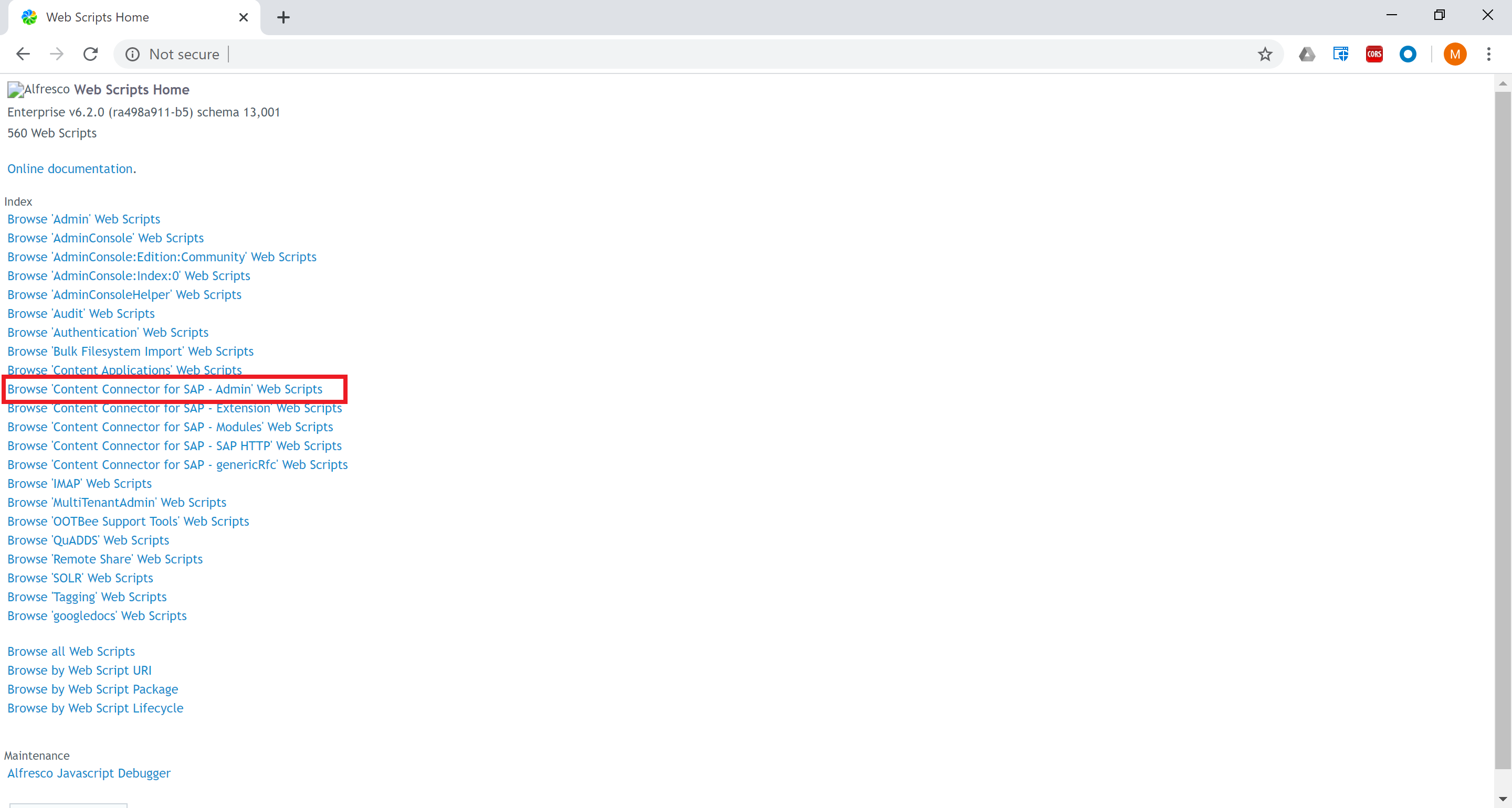

The Web Script is available on the repository tier. To access it, log in to the Alfresco Web Scripts Home and browse to Content Connector for SAP - Admin web scripts.
In this section, scroll to Health Check of Content Connector for SAP where the Web Script is available. If you click the link without any modification, the Web Script returns an error. You’ll need to change the
archiveId parameter, as shown in the next section.
List all available SAP System Configurations with SAP Content repository names
You call the Web Script with an empty value for the
archiveId parameter to list all SAP System Configurations with their related SAP Content Repositories. These parameters are defined in
In this case, the Web Script returns all settings that affect the global behavior of the SAP Connector (if available). See Additional repository settings for more details. It also lists the
archiveIds parameter for each available SAP System Configuration, and displays the values (which are the SAP Content Repository names).
Click an SAP Content Repository name to show the details of the related SAP System Configuration.
Check SAP Connector health by SAP Content repository name
You can check the SAP System Configuration for a particular SAP Content Repository by passing the
archiveId parameter with an existing SAP Content Repository name. For example:
This prints all settings for the given
archiveId. It includes all settings of the related SAP System Configuration, and also SAP Connector core settings. See Additional repository settings for more details. In addition, it may show any detected configuration errors for this
Troubleshoot SAP Connector
Your problem may be related to any one of the following issues:
License not valid
If you can’t apply the SAP Connector license you’ve received successfully, make sure you’ve provided the correct details of your landscape (such as Is Alfresco Content Services running in a virtual machine?) which are important to issue the license.
Error during connection test setting up a secure connection (HTTPS) in OAC0
If you receive an error during the connection test in OAC0 for the SAP Content Repository, make sure to have the
Port Number removed. Only provide the
SSL Port Number in this case.
Payment required (HTTP Response code 402)
If the SAP Connector license becomes invalid or is missing, the SAP user will get a popup which states “Payment required”, along with a 402 HTTP response code once they try to store a document in Content Services. In this case, check the SAP Connector license. See Installing the license for more.
