Alfresco Control Center is being developed to allow the administration of multiple Alfresco applications from a single, modern interface. It will provide admin functions that are currently only available in Alfresco Share, and will eventually allow the full administration of Alfresco Content Services and Alfresco Governance Services without needing to use the Share application.

The initial release focussed on the basic minimum requirements to configure Content Services (Enterprise Edition) - the creation of users and groups of users. Additional functionality will be added in future releases.

Overview

The Control Center is provided as a Docker image for containerized deployment. It is recommended for evaluations only (i.e. test and development environments), and accessed using the /admin URL.

When you expand the User Management section, you can access the following functionality:

• A Users section used to manage your users.
• A Groups section used to manage the groups to which your users may be added.

Note: This provides an alternative way of managing users and groups in Share Admin Tools.

When you expand the Content Structuring section, you can access the following functionality:

• A Tags section used to manage tags for your content.
• A Categories section used to manage categories for your content.

Prerequisites

There are a number of software requirements for installing the Control Center. These are the same as for deploying Alfresco Content Services. However, the same details are provided here for easy reference.

Containerized deployment

The images downloaded directly from Docker Hub, or Quay.io are for a limited trial of the Enterprise version of Content Services that goes into read-only mode after 2 days. For a longer (30-day) trial, get the Alfresco Content Services Download Trial.

Note: A Quay.io account is needed to pull the Docker images that are needed:

• quay.io/alfresco/alfresco-control-center

Note: Alfresco customers can request Quay.io credentials by logging a support ticket via Hyland Community. These credentials are required to pull private (Enterprise-only) Docker images from Quay.io.

Software requirements (Docker)

• Docker (latest stable version)
  • This allows you to run Docker images and docker-compose on a single computer.
• Docker Compose
  • Docker Compose is included as part of some Docker installers. If it’s not part of your installation, then install it separately after you’ve installed Docker.

Note: Check the prerequisites for your operating system, both for Docker and Docker Compose.

Deployment

These steps describe how to quickly start up Content Services (including Control Center) using Docker Compose.

Note: While Docker Compose is often used for production deployments, the Docker Compose file provided is recommended for development and test environments only. Customers are expected to adapt this file to their own requirements, if they intend to use Docker Compose to deploy a production environment.

To deploy Content Services using Docker Compose, download and install Docker, then follow the steps below. Make sure that you’ve reviewed the prerequisites before continuing.

1. Download the docker-compose.yml file by accessing the Content Services Download Trial page, which will give you a 30-day license.

   If you already have a valid license file for Content Services 23.1, you can apply it directly to the running system. See Uploading a new license for more details.

   Note: Make sure that exposed ports are open on your host computer. Check the docker-compose.yml file to determine the exposed ports - refer to the host:container port definitions. You’ll see they include 5432, 8080, 8083 and others.

   Note: The Download Trial is usually updated for the most recent version of Content Services. The latest published version on our website is labelled Version 23.1.1 - November 2023.

2. Save the docker-compose.yml file in a local folder.

3. Log in to Quay.io using your credentials:

   Code copied to clipboard.
    docker login quay.io


   Alfresco customers can request Quay.io credentials by logging a support ticket via Hyland Community. These credentials are required to pull private (Enterprise-only) Docker images from Quay.io.

4. Deploy Content Services, including the repository, Share, Postgres database, Search Services, etc.:

   Code copied to clipboard.
    docker-compose up


   This downloads the images, fetches all the dependencies, creates each container, and then starts the system.

   As an alternative, you can also start the containers in the background by running docker-compose up -d.

5. Wait for the logs to complete.

   See Troubleshooting if you encounter errors whilst the system is starting up.

6. Open your browser and check everything starts up correctly:

   Service	Endpoint
   Control Center	http://localhost:8080/admin
   Digital Workspace	http://localhost:8080/workspace
   Share	http://localhost:8080/share
   Administration and REST APIs	http://localhost:8080/alfresco

   If Docker is running on your local machine, the IP address will be just localhost.

   If you’re still using the Docker Toolbox, you’ll need to switch to Docker Desktop as Docker Toolbox is deprecated.

7. Log in to the Control Center as the admin user. Enter the default administrator password admin.

Manage users

The User Management section of the application is used to create and manage users, and groups. Expand the section to see the two main areas the Control Center covers: Users and Groups.

The Users section displays the current list of users in the system.

Properties

The properties for users are:

Add a user

To add a user:

1. Sign into the application.

2. Expand the User Management section and select Users.

3. Click the Add User icon to display the Add User page.

4. Fill in the properties for a user and click Create.

   All fields marked with an asterisk (*) are required.

   Note: The create button isn’t available until you complete all the required fields. If you didn’t type in matching passwords, you’ll see a message to say that the password fields do not match.

Once the user has been created, click the vertical ellipsis (⋮) at end of the row to access more options, or use the search field on the toolbar to search for users:

• View the user to assign them to one or more groups.
• Edit the user details, including resetting their password.
• Search for any user and view that user’s account information. In the search box, enter the full or partial name of the user (at least 3 characters).

Manage groups

The Groups section displays the current list of groups in the system.

Groups are used to create both top level user groups and subgroups within existing groups.

Properties

The properties for groups are:

Add a group

To add a group:

1. Sign into the application.

2. Expand the User Management section and select Groups.

3. Click the Add Group icon to display the Add Group page.

4. Give a name to the group and click Create.

Once the group has been created, click the vertical ellipsis (⋮) at end of the row to access more options, or use the search field on the toolbar to search for groups:

• Create subgroup to create subgroups from the parent group.
• Edit group details to change the group name.
• Delete group to remove the group from your system.
• Search for a group. In the search box, enter the full or partial name (at least 3 characters).

Note: You can only modify the group Name once a group has been created.

Tags

A tag is a marker that you can assign to related content to help categorize it. This makes it easier to view related content. You can create tags in the Control Center that can be used in the Digital Workspace. For example, you may create tags called proposal-one, and proposal-two to help you identify all the content that has been created for two different versions of a design. In the Digital Workspace you can search your content that has specific tags. For more on their use in the Digital Workspace, see Tags.

To create a tag:

1. Log into the Control Center.

2. Expand Content Structuring in the left pane and then select Tags.

3. Click the Create button on the top right.

4. Click the + symbol and enter a Name for the new tag.

   Each tag created in the Control Center must be unique. When you enter a name for a new tag, the Control Center provides a list of existing tags with similar names. You can check if the tag that you want to create has already been created. If the name for the tag already exists you must create it with another unique name.

5. Click Create: your-tag-name and then click Save.

   You can create more than one tag during this process. To do this continue by clicking the + symbol again to add another tag to the list. After adding all the tags you need to the list, click Save to create them.

The tag list automatically refreshes and you can see the new tag you created. If you click the three dots on the right hand side of your tag you are able to Edit or Delete it.

Note: Deleting a tag removes it from all the files it has been assigned to in the Digital Workspace.

Categories

A category is a group of files, or other categories, that all relate to a project or concept. Content can be a part of more than one category, for example, a category called Language may include a language file called English, and the file may also exist within a category called Country. For more on their use in the Digital Workspace, see Categories

To create a root level category:

1. Log into the Control Center.

2. Expand Content Structuring in the left pane and then select Categories.

3. Click the Create button on the top right.

4. Click the + symbol and enter a Name for the new category.

   You can create more than one category during this process. To do this continue by clicking the + symbol again to create another category and then click Save.

The category tree automatically refreshes and you can see the new category you created. If you click the three dots on the right hand side of your category you are able to Create a subcategory, Edit it, or Delete it.

A category name does not need to be unique to the Control Center, it only needs to be unique within the level it sits in within the Control Center.

Security Controls

You can add Security Controls to files and folders so that only users with the required security level can view or access them. These security controls are created and configured using the Control Center and are applied to your files or folders from within the Digital Workspace. The Security Controls you create are made up of Controls created in the Control Center which are in turn made up of one or more Security Marks. You can create as many Security Marks that you require within the different Controls. The names of the Controls and Security Marks you create will be unique to your organization.

There are three different ways you can configure your Controls:

• All = Users must have all Security Marks from the group that are applied to a file to see that file.

  Example: A Security Group named Training contains Security Marks of Media and Data Handling. To see a file marked as both Media or Data Handling, a user must have both Media and Data Handling clearance.

• Any = Users must have at least one of the Security Marks from the group that are applied to a file to see that file.

  Example: A Security Group named Nationality contains Security Marks of UK, US, and Aus. To see a file marked as UK and US, a user must have UK and / or US clearance.

• Hierarchical = Security Marks are ranked in the order they’re created. The mark created first in a security group has the greatest clearance, the one created last the least clearance.

  Example: The predefined Classification group has marks of Top Secret, Secret, and Classified. To see a file classified as Secret, the user must have Secret or Top Secret clearance.

Security Controls in the Control Center

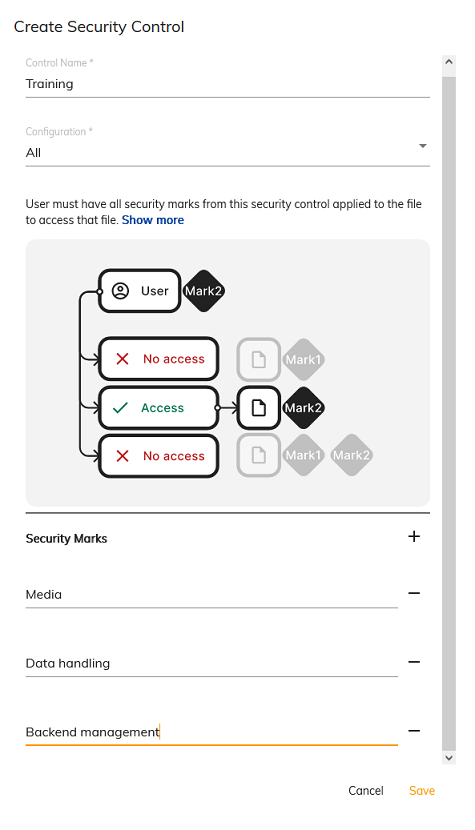

Use this example to create an All Control in the Control Center called Training that has three Security Marks, Media, Data handling, and Backend management.

Important: All Security Marks you create are visible to all users within the Digital Workspace.

Create Controls and Security Marks

Use the Control Center to create Controls.

1. Log into the Control Center as an administrator.

2. Expand the Security entry in the left pane and then click Security Controls.

   You can view and edit all of your Controls from here.

3. Click Create New Control.

4. Enter Training in the Control Name field.

5. Select All from the Configuration drop-down list.

   You can see from the example diagram the user has Mark 2 security rights. When All is selected from the Configuration drop-down list it means they can only access files or directories that only have Mark 2 Security Marks assigned to them.

6. Click the + symbol next to Security Marks.

7. Enter Media into the new row.

8. Click the + symbol again next to Security Marks.

9. Enter Data handling into the new row.

10. Click the + symbol again next to Security Marks.

11. Enter Backend management into the new row and then click Save.

You have created a new Control called Training that has three Security Marks. The Security Marks will be visible and useable within the Digital Workspace.

Troubleshooting

1. If you have issues running docker-compose up after deleting a previous Docker Compose cluster, try replacing step 4 in the initial Docker Compose instructions with:

   Code copied to clipboard.
    docker-compose down && docker-compose build --no-cache && docker-compose up


2. If you’re having issues running docker-compose up on Windows environments due to unavailable or reserved ports, and get errors such as: bind: An attempt was made to access a socket in a way forbidden by its access permissions which means that the Windows NAT (WinNAT) service has reserved the port range that Docker Compose is trying to use.

   To remedy this issue, run the following in a terminal:

   Code copied to clipboard.
    net stop winnat
    docker-compose up
    net start winnat


3. Stop the session by using CONTROL+C.

4. Remove the containers (using the --rmi all option):

   Code copied to clipboard.
    docker-compose down --rmi all


5. Try allocating more memory resources, as advised in docker-compose.yml.

   For example, in Docker, change the memory setting in Preferences (or Settings) Resources > Advanced > Memory to at least 13 GB. Make sure you restart Docker and wait for the process to finish before continuing.

   Go back to step 4 in the initial Docker Compose instructions to start the deployment again.

Note: You’ll need a machine with at least 13 GB of memory to distribute among the Docker containers.
