Securing your installation

This page contains the set of recommendations required to secure a Content Services installation.

Note: The system on which the Content Services software is installed - such as operating systems, ActiveMQ, and DBMS - will also require security hardening. This is not covered here.

Overview

For a secure Content Services installation you need protect the system from all possible points of attack. It’s difficult to list down all the possible configurations as most of them come under the broad topic of best practices. Instead we are going to focus on the security related considerations. In addition, in most production environments every Content Services installation is linked to other tools like portals, intranets, business intelligence tools, CMS, ECM and CRM, so it’s advisable to secure these integrated systems as well.

Also, if you have installed a Content Services cluster, then you should remember to check the security of all nodes involved.

The following picture gives an overview of the components that needs to be secured:

secure-install-overview

Check all passwords

The most important aspect of security are the passwords used to access the system. Your passwords are your first line of defense, so use as strong passwords as possible. Passwords can be strengthen in many ways. Do not ignore them since they can be the difference between staying protected and compromising your security.

Do not run as root

If someone does compromise Content Services you want to limit the damage they can do. If Content Services is running as root, they can wreck havoc on your server.

Adding a Reverse proxy (1)

It is mandatory to have a reverse proxy in front of your Content Services infrastructure. This proxy is then configured with a whitelist of allowed URLs, and blocks everything else. The proxy is also where you implement SSL.

You can find a sample NGINX configuration in our GitHub project, and the corresponding image in Docker Hub.

Secure server traffic with HTTPS (1)

If you aren’t going to encrypt the traffic to your server then you should look at the content as public information. If that sounds like a bad idea, then you must encrypt your traffic to prevent passwords from being exposed in clear text.

The service Let’s Encrypt makes quality SSL certificates available to everyone for free. Yes, you have to renew them more often than paid certificates but you can automate that with EFF’s certbot. In fact, once you establish the web proxy in front of Tomcat, securing your traffic with Let’s Encrypt is as easy as running the certbot script if you have a public-facing server. All communication should be over Secure Socket Layer (SSL).

See Configure SSL for production environment.

Note that besides HTTPS traffic (Digital Workspace, Share, WebDAV, ReST API) you need also consider:

  • SharePoint Protocol
  • IMAPS
  • SMTP Inbound TLS
  • SMTP Outbound TLS
  • FTPS
  • LDAPS Connection
  • Consider Hazelcast or JGroups Connection (Clustering)

Secure traffic between Repository and Solr (2)

The Repository and Solr are separate web applications. Regardless of whether or not these webapps are running in the same Tomcat server, different Tomcat servers, or even different machines, they use HTTP to communicate with each other.

Note. the communication between Solr and the Repository is NOT encrypted by default. See Docker Compose and Helm configurations. The reason for this is that providing SSL encryption out-of-the-box is always tricky. For example, providing default certificates make no sense, and generated self signed certs my not fit your policy if you have your own PKI. What we provide in terms of helm charts are building blocks for you to build upon, it’s not a production ready configuration.

When secure communication is turned on between Solr and the Repository the Solr web application uses certificate-based client authentication (i.e. so the Repository knows that it is really Solr talking to it). But, by default, the certificate Solr uses for both encryption and authentication is the one that Alfresco generates and ships with the product. This means that, by default, if someone can get to your Solr port (8983, by default) they can search your entire content repository because the public has easy access to that Alfresco-generated, default client certificate.

To fix this turn on secure communcation between Solr and the Repository and re-generate the certificate.

Follow the Search Services security documentation for information on how to set this up on Windows or Linux.

See also managing Alfresco keystores for introduction and configuration of the different keystores.

Share Web UI security (3)

The Alfresco Share Web UI is one of the main user interfaces used by Alfresco users. It needs to be configured for secure access. See Share security policies and filters.

Share is behind the web proxy so it is always accessed via HTTPS.

Digital Workspace Web UI security (4)

The Alfresco Digital Workspace (ADW) Web UI is one of the main user interfaces used by Alfresco users. ADW is an Angular application so it is beneficial to look at Angular security documentation.

ADW is behind the web proxy so it is always accessed via HTTPS.

ReST API secure access (5)

You can also configure filters in Alfresco Repository to mitigate security attacks when the Content Services ReST API is accessed externally.

See repository security policies and filters

The ReST API is behind the web proxy so it is always accessed via HTTPS.

Securing HTML transformations

HTML pipelines that use LibreOffice are vulnerable to BSSRF attacks. These can be disabled by following these instructions.

Encrypting metadata

It’s possible to encrypt node (i.e. file or folder) properties (i.e. metadata). For more information about this see managing Alfresco keystores.

Dedicated user for external system access

If you are going to integrate Content Services with external systems, then create a dedicated user for each external system allowing access to the repository based on what information they need. Instead of giving them access via the admin user that has access to everything.

Disable Guest user

Read the information on the Set up authentication and sync page and specifically search for Guest user config on this page.

Disable unused protocols

This is about reducing your attack surface. One of the nice things about Content Services is the wide number of options you have for getting content in and out of the repository. That’s great, but if you aren’t using, for example, FTP, then why leave FTP enabled? That’s a potential place an attacker could find a toehold. Purposefully review each of the protocols that Alfresco supports and disable those that are not being used.

Summary of ports used in a Content Services installation

The following table shows the protocols and ports used in a Content Services installation together with some useful comments on dos and don’ts.

Inbound firewall ports:

acs-protocol-overview-inbound

Outbound firewall ports:

acs-protocol-overview-outbound

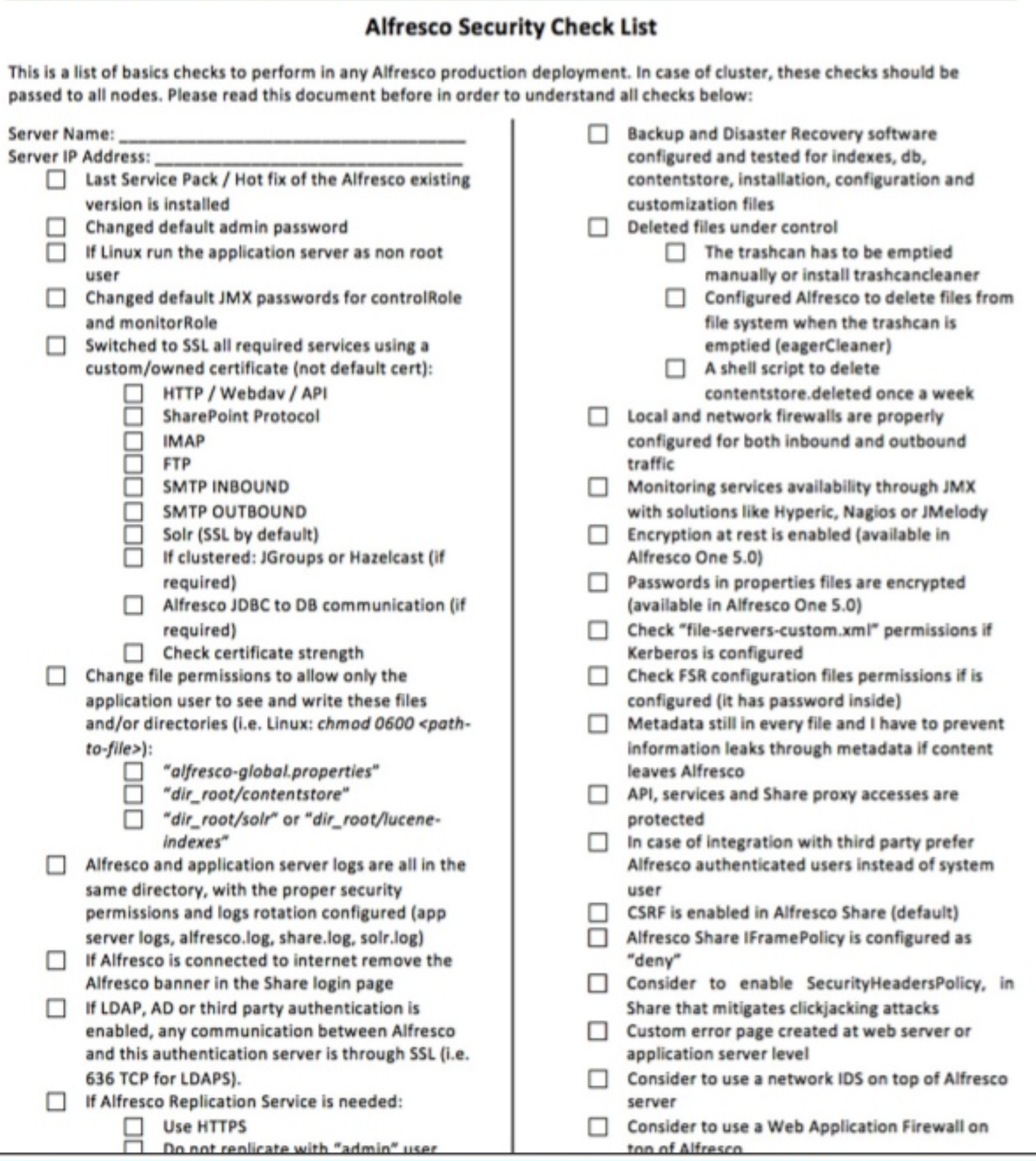

Security checklist

The following is a typical security checklist that you can use to make sure your installation is secure:

acs-security-checklist
