Decision tables

Decision tables are used to manage business decisions within process workflows. They adhere to the Decision Model and Notation (DMN) standard. Decision tables take at least one input and have at least one output. The inputs are evaluated against a set of rules defined by the modeler and then produce the relevant output(s) that match those rules back to the process.

Decision tables can be added to a process definition by creating a business rule task and selecting the name of a decision table from the dropdown.

Properties

The basic properties of a decision table are:

Property Description
Decision table name Required. The name of the decision table. Must be in lowercase and between 1 and 26 characters in length. Alphanumeric characters and hyphens are allowed, however the name must begin with a letter and end alphanumerically, for example temperature-evaluation.
Decision table description Optional. A description of what the decision table should be used for, for example Decision table to select an ice cream flavor based on temperature.

Create a decision table

To create a decision table:

  1. Sign into the Modeling Application and open a project.

  2. Click the NEW dropdown.

  3. Select how to create the decision table:

    • Create > Decision Table creates a new, empty decision table.

    • Upload > Decision Table allows for uploading an existing decision table .xml file into the Modeling Application.

    Alternatively use the + or Upload buttons next to Decision Tables in the left-hand menu.

  4. Enter a name and optional description.

Decision table modeling

The following is a decision table that selects the best flavor of ice cream to eat based on which day of the week it is and what the temperature is. This example will be used to assist in explaining the different elements that make up a decision table.

Example decision table

Inputs

Inputs are the fields a decision table evaluates against. In the ice cream decision table the inputs are dayOfWeek and temperature of data types string and integer respectively. Process variables and a mapping type are used to pass the value of an input into the decision table to be evaluated. Inputs also contain a label which are Day of the week and Temperature (Celsius) in the example.

The following is the XML for input variable dayOfWeek:

<input id="InputClause_Ice_cream" label="Day of the week" activiti:inputVariable="dayOfWeek">
   <inputExpression id="LiteralExpression_Ice_cream" typeRef="string" />
</input>

Example decision table inputs

Input entries, or values are the possible input values to match against for each rule in a decision table. In the ice cream example, possible values include Monday and >=25.

Note: Inputs can have a - in a column that matches any value passed in. This appears as blank in the associated XML.

The following is the XML for the input entry of row 1:

<inputEntry id="UnaryTests_0pwpzaz">
   <text></text>
</inputEntry>
<inputEntry id="UnaryTests_0g2rex3">
   <text>&gt;35</text>
</inputEntry>

Input entries use the FEEL (Friendly Enough Expression Language) language.

Outputs

Outputs are the result(s) that a decision table comes to after evaluating the inputs. Output columns have a name and a label. Output values can be passed back to the process using process variables and setting the desired mapping type. In the ice cream decision table the output name is flavor and it is of data type string.

The following is the XML for the output from the ice cream decision table

<output id="OutputClause_Ice_cream" label="Flavor" name="flavor" typeRef="string" />

Example decision table output

Output entries are the possible outputs for each rule in a decision table. In the ice cream example, possible values include Triple chocolate and Honeycomb.

The following is the output entry for row 10:

<outputEntry id="LiteralExpression_1olsqqv">
   <text>"Triple chocolate"</text>
</outputEntry>

Rules

Each row in a decision table is known as a rule. A rule evaluates which outputs are valid for the input(s) provided. In the ice cream flavor example, the following are some of the rules:

Example decision table rules

  • On a Monday when the temperature is below 25°c, you should eat pistachio ice cream.
  • On a Wednesday when the temperature is 25°c or above, you should eat vanilla ice cream.
  • On a Friday you should eat triple chocolate ice cream, irrespective of temperature.
  • On Saturdays or Sundays when the temperature is 25°c or above, you should eat mint chocolate ice cream.
  • When the temperature is above 35°c you should eat lemon sorbet, irrespective of the day.

Note: If there are multiple inputs in a single rule, decision tables use an AND operator between the inputs.

Simulation allows you to see which rules are satisfied by testing input values.

The XML for a rule is the combination of the input and output entries with a unique rule id. The following is an example for rule or row 12:

<rule id="DecisionRule_1drb7gg">
   <inputEntry id="UnaryTests_07yha3g">
      <text>"Saturday","Sunday"</text>
   </inputEntry>
   <inputEntry id="UnaryTests_00i1d80">
       <text>&gt;=25</text>
   </inputEntry>
   <outputEntry id="LiteralExpression_1i6ddhb">
        <text>"Mint chocolate"</text>
   </outputEntry>
</rule>

Hit policies

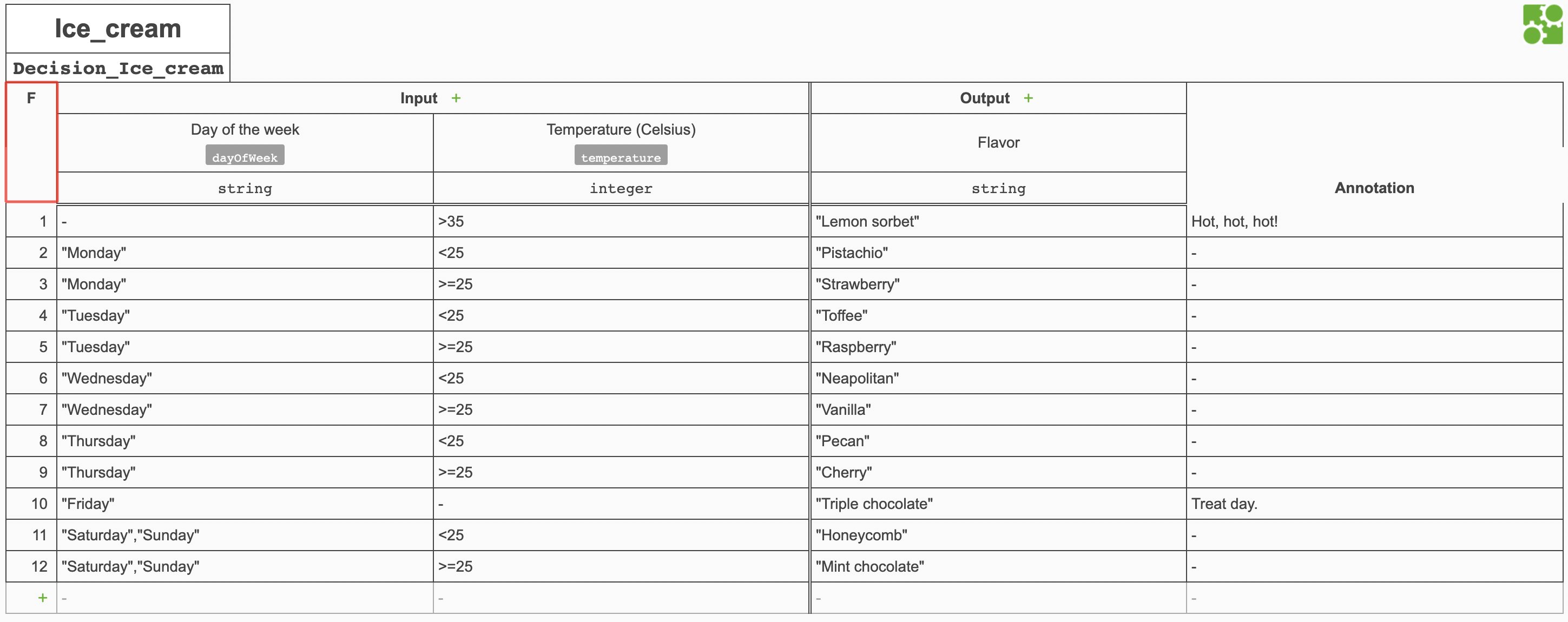

Underneath the name of the decision table is a letter that sets the hit policy for a decision table. Hit policies are used to set how rules are evaluated when a decision table is executed.

Using the ice cream example, the letter is F which is a FIRST hit policy. This means that whilst multiple rules can be matched, only the first one matched will be returned as the output. The rules are evaluated in the order they are defined in the decision table.

Example decision table hit policy

Hit policies are defined at the top level of a decision table XML:

<decisionTable id="DecisionTable_Ice_cream" hitPolicy="FIRST">

Annotations

On the far right of a decision table is a column for annotations. This is just a place to store notes and is only visible to the modeler.

Example decision table annotation

Annotations are contained in a description property of a rule in the XML:

<rule id="DecisionRule_0vx00qh">
   <description>Treat day.</description>
...
</rule>

Hit policy types

Hit policies define how many rules can be matched in a decision table and which of the results are included in the output.

The default hit policy is UNIQUE.

Hit policy Description
U: UNIQUE Only a single rule can be matched. If more than one rule is matched the hit policy is violated
A: ANY Multiple rules can be matched. All matching rules must have identical entries for their output and if matching rules have different output entries the hit policy is violated
F: FIRST Multiple rules can be matched. Only the output of the first rule that is matched will be used, with rules being evaluated in the order they are defined in the decision table
R: RULE ORDER Multiple rules can be matched. All outputs are returned in the order that rules are defined in the decision table
O : OUTPUT ORDER Multiple rules can be matched. All outputs are returned in the order that output values are defined in the decision table
P : PRIORITY Multiple rules can be matched. Only the output with the highest priority will be used, with priority being calculated based on the order rules are specified in descending order
C: COLLECT Multiple rules can be satisfied and multiple outputs will be generated with no ordering. Aggregators can be used to group the results which will generate only a single output. See the following rows for collect aggregators.
C +: COLLECT SUM The sum of the output values is used to generate a single output
C <: COLLECT MIN The lowest value output is used to generate a single output
C >: COLLECT MAX The highest value output is used to generate a single output
C #: COLLECT COUNT The total number of outputs is used to generate a single output

Decision table simulation

Once you have designed a decision table, you can test which rules are satisfied by entering test input values.

In the UI click the Simulate button after entering the input values to simulate. The results will be populated in the outputs section.

The payload of the API accepts an XML file of the decision table definition, the table name and the test input values as JSON and returns the output values as JSON.

Actions

The actions that can be run against a decision table are:

Action Description
Download decision table Download the XML for the decision table.
Validate Run validation against the decision table. Any errors can be seen in the log history at the bottom of the Modeling Application and are flagged in a pop-up box.
Save Save any changes made to the decision table.
Delete Delete the decision table.
